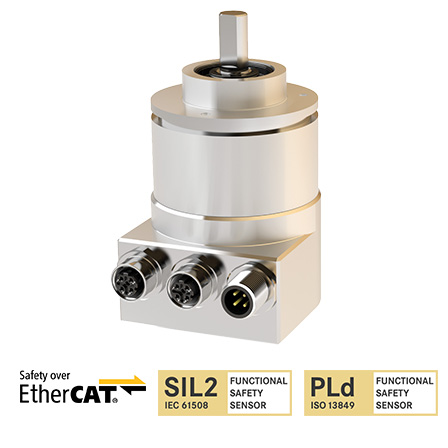

Absolute Encoder TRK/S3 EtherCat Safety Encoder (FSoE)

Provides safety-related position and speed feedback using safety over EtherCAT (FSoE) for fast, seamless integration into EtherCAT based automation and motion systems.

Features

Ultra compact version with a diameter of 42 mm
Contactless, wear-free sensor system
Available as singleturn or multiturn sensor
High vibration and shock resistance thanks to the robust mechanical design
SIL2 and PLd certified
Safe position and safe speed signal
Unsafe position and speed signal (grey channel)
Resolution: up to 65536 steps / 360° (16 bit) • Programmable via EtherCAT
Slewing ring function available

FSoE Safety Encoder for Reliable Position & Speed Feedback

The TRK/S3 FSoE safety encoder provides certified position and speed feedback for safety-critical motion applications. Designed for integration with EtherCAT and Safety over EtherCAT (FSoE) systems, the compact 42 mm absolute encoder supports applications up to SIL 2 and PL d. Available in single-turn and multi-turn configurations, the TRK/S3 uses contactless magnetic sensing to provide reliable motion feedback without mechanical wear. Safe position and speed signals can be transmitted through FSoE, while an additional non-safety channel supports standard control functions. With its compact footprint, high shock and vibration resistance, and programmable EtherCAT parameters, the TRK/S3 is well suited for mobile machinery, material handling, robotics, automated equipment, and other safety-related motion systems
