Linear Encoder Model LCX

Draw wire linear solution with a Fast and easy encoder mounting.

Features

Fast and easy encoder mounting
wire length options from 1 to 42.5 metres
Linearity ± 0.05 % of full range (with encoder)
Optional high corrosion protection
Temperature range -20° C to 85° C
Optional low temperature range of -40° C

The Model LCX is Fast and Easy to Mount and is available in wire lengths from one metre to 42.5 metres, the Model LCX Draw Wire is compatible with the following 58 mm shafted encoders with clamping flange: absolute encoder Model A58SE,which offers EtherCAT® and PROFINET® communication protocols; Model 758, a high-performance incremental encoder and the Model 858S, a stainless steel incremental encoder. Choose the right encoder and wire length for your application.

The LCX Series of Draw Wire Solutions is manufactured for BEPC/EPC by our German technology partner.

Model LCX Encoder Options

Choose one of these encoders. Contact Technical Support for more information.

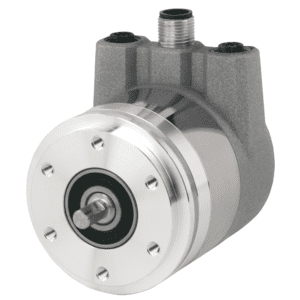

Model A58SE

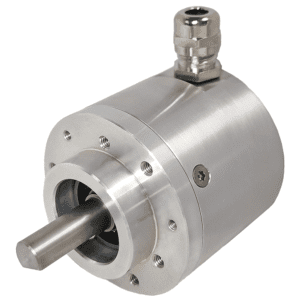

Model 758

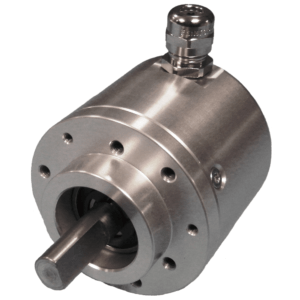

Model 858S

Applications

Industries:

Autonomous Vehicles & Robots, Lift industry, Machine Vision, Stagecraft, Warehousing

Functions:

Cut-to-Length, Linear Measurement

model lcx linear encoder in a silver metal housing with retractable cable

Configurations

Clear

Technical Data

Drawings

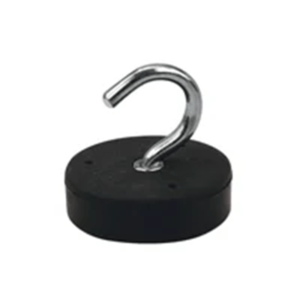

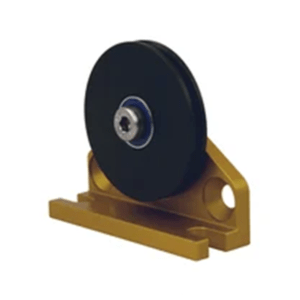

Related Accessories
